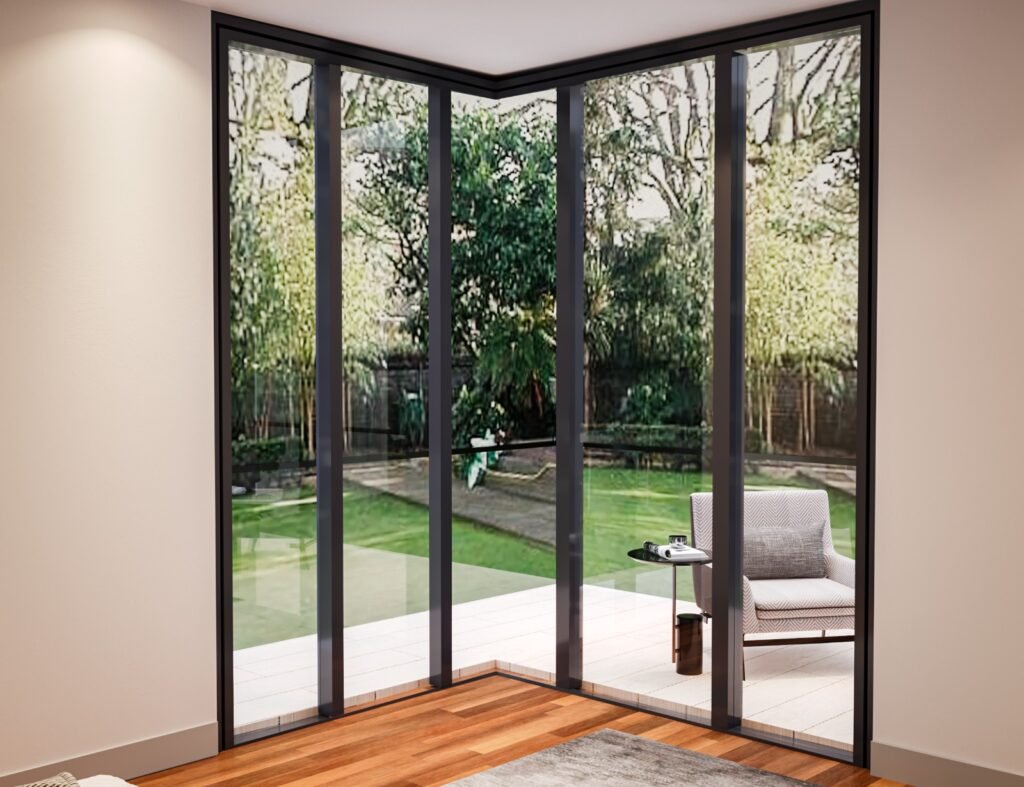

Graf 32 Sliding Windows
Product Range of Typologies
Frame Info
Frame Face Width: 44mm
Frame Depth: 48mm, 74mm, 84mm
Sash Face Width: 53mm
Sash Depth: 26mm
Wall Thickness: Min 1.2mm
Glass Thickness: 5mm to 8mm
Interlock Face width: 32mm
Hardware
Hardware: Aluminium/
Stainless steel
Single Locking Systems
Specifications
Wind Load Resistance
Designed for 1500 pa
Air Permeability
Designed for 300 pa
Water Tightness
Designed for 200 pa
Sash Info
Sash Mirimum
600mm (H) x 500mm (W)
Sash Size Maximum
1500mm (H) x 800mm (W)
Max per sash weight 30 Kg
Non Concealed
The ultimate in luxury, performance, and durability, ideal for entrances, balconies, and patios in premium residential and commercial settings . Featuring a sleek 20mm interlock sightline and supporting double-glazing up to 24mm, this system offers optional concealed frames and multiple locking points for a seamless and secure experience
The ultimate in luxury, performance, and durability, ideal for entrances, balconies, and patios in premium residential and commercial settings . Featuring a sleek 20mm interlock sightline and supporting double-glazing up to 24mm, this system offers optional concealed frames and multiple locking points for a seamless and secure experience
The ultimate in luxury, performance, and durability, ideal for entrances, balconies, and patios in premium residential and commercial settings . Featuring a sleek 20mm interlock sightline and supporting double-glazing up to 24mm, this system offers optional concealed frames and multiple locking points for a seamless and secure experience

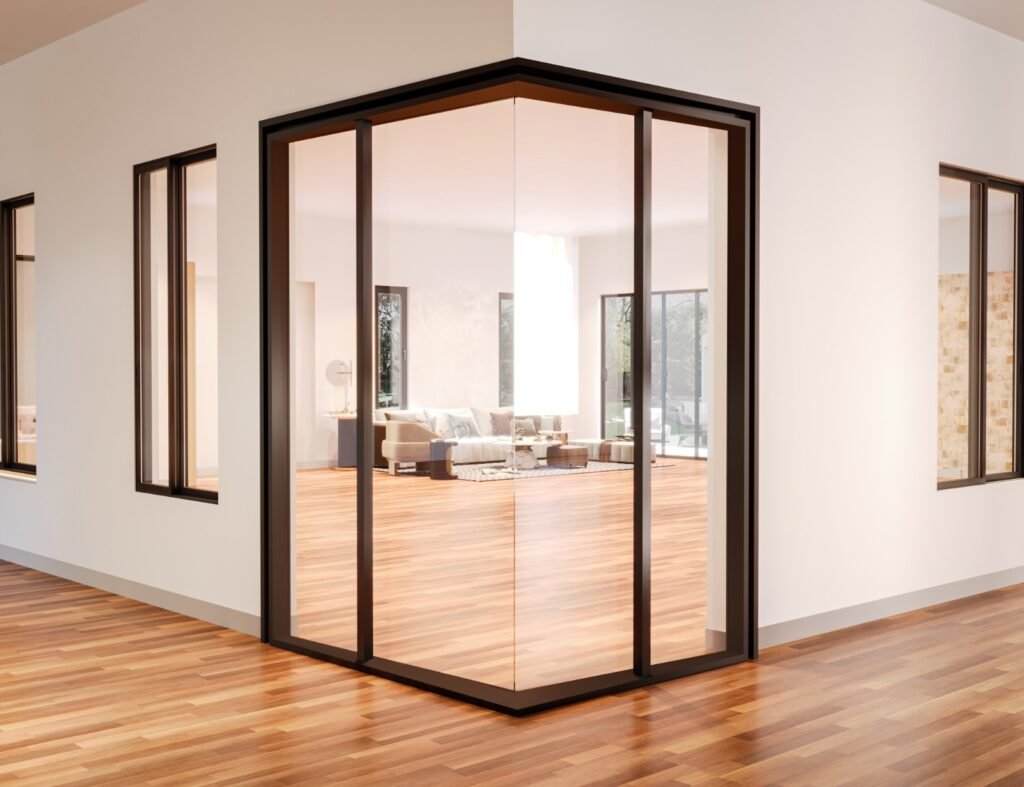

Graf 26 Sliding Doors
Frame Info
Frame Face Width: 44mm
Frame Depth: 48mm, 74mm, 84mm
Sash Face Width: 53mm
Sash Depth: 26mm
Wall Thickness: Min 1.2mm
Glass Thickness: 5mm to 8mm
Interlock Face width: 32mm
Specifications
Wind Load Resistance
Designed for 1500 pa
Air Permeability
Designed for 300 pa
Water Tightness
Designed for 200 pa
Hardware
Hardware: Aluminium/
Stainless steel
Multi Point Locking Systems
Sash Info
Sash Minimum
600mm (H) x 500mm (W)
Sash Size Maximum
2100mm (H) x 1000mm (W)
Max per sash weight 50 Kg
Non Concealed
The ultimate in luxury, performance, and durability, ideal for entrances, balconies, and patios in premium residential and commercial settings . Featuring a sleek 20mm interlock sightline and supporting double-glazing up to 24mm, this system offers optional concealed frames and multiple locking points for a seamless and secure experience
The ultimate in luxury, performance, and durability, ideal for entrances, balconies, and patios in premium residential and commercial settings . Featuring a sleek 20mm interlock sightline and supporting double-glazing up to 24mm, this system offers optional concealed frames and multiple locking points for a seamless and secure experience
The ultimate in luxury, performance, and durability, ideal for entrances, balconies, and patios in premium residential and commercial settings . Featuring a sleek 20mm interlock sightline and supporting double-glazing up to 24mm, this system offers optional concealed frames and multiple locking points for a seamless and secure experience
